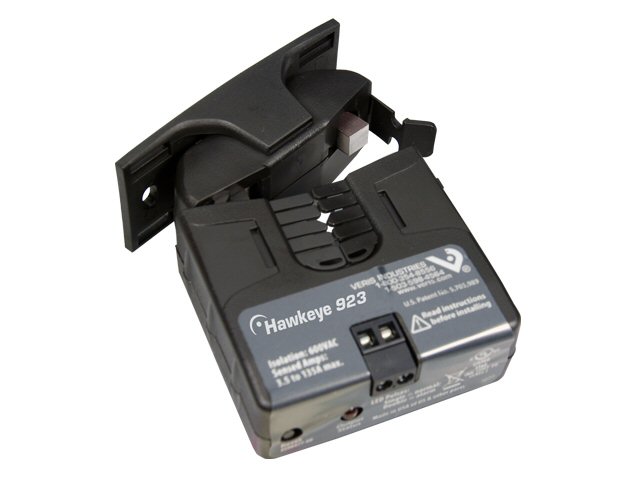

Veris Industries - H923 - Current Sensor Split; Self Pwrd 0-10Vdc Veris Industries - Current Sensor Split; Self Pwrd 0-10Vdc

The Hawkeye 923 provides accurate load trending information with a proportional 0-10VDC output signal. Devices offer three amperage range options, with slide-switch selection for easy field adjustment – no need for jumpers.
APPLICATIONS

  • Load trending
  • Motor control
  • Fan/pump status
Self-powered analog current sensor, 0-10VDC output
  • Self-gripping split-core for fast retrofit installation...no need to remove conductor
  • No jumpers on unit...reduces installation error
  • No external power required for sensor
Factory calibrated for ease of installation
  • Factory calibrated field-selectable ranges for high resolution and installation ease
  • One device to stock and install...reduces installation charges
  • Bracket can be installed in three different configurations...added flexibility
  • 100% solid state, no moving parts to fail
  • 5-year limited warranty

Customer Rating: Not Rated Yet
Quick Order Number: 82
Manufacturer: Veris Industries
Part Number: H923
Weight: 0.38 lbs
Stocked Item*: Yes
Quantity Available*: 2
Price: $61.16
Quantity:

* If an order is placed where the item is a "Non-Stocked Item" or the quantity ordered is more than the quantity available, all items in stock will be shipped and the remainder of the items will be shipped as soon as we get the "backordered" items in.



Product Specifications

  • Sensor Power Induced from monitored current
  • Insulation Class 300VAC RMS
  • Frequency Range 50/60Hz
  • Temperature Range -15° to 60°C (5° to 140°F)
  • Humidity Range 10 - 90% RH, non-condensing
  • Accuracy ±2% full scale from 10% to 100% (selected range)
  • Response Time 2 sec.
  • Terminal Block Maximum Wire Size 14 AWG
  • Terminal Block Torque (nominal) 4 in-lbs (0.45 N-m)
  • Agency Approvals CE: EN61010-1:2001-2, CAT III, deg. 2, basic insulation
