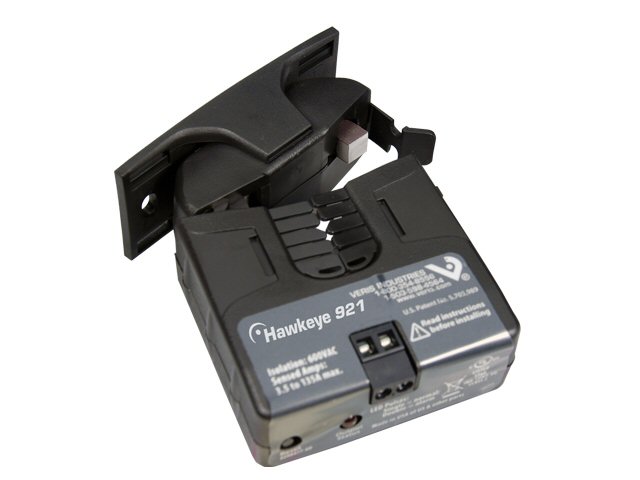

Veris Industries - H921 - 4-20mA 0-30/60/120A Split Core Veris Industries - Current Sensor Loop

4-20mA 0-30/60/120A Split Core

The Hawkeye 921 provides accurate load trending information with a proportional 4-20mA output signal. Preset slide-switches provide easy field setup of sensed amperage range with no need for jumpers.
APPLICATIONS

  • Load trending
  • Motor control
  • Fan/Pump Status
Loop powered analog current sensor simplifies installation
  • Power the sensor, and receive the signal with only two wires...lower cabling and commissioning costs than with traditional 3-wire sensors
  • Self-gripping split-core for fast retrofit installation...no need to remove conductor
  • Selectable factory calibrated ranges for increased flexibility and resolution
    • Factory calibrated switch-selectable ranges for high resolution and installation ease
    • Three field-selectable ranges per unit...fewer versions to choose from, stock, and install
    • Bracket can be installed in three different configurations...added flexibility
    • 100% solid state, no moving parts to fail
    • 5-year limited warranty

Customer Rating: Not Rated Yet
Quick Order Number: 81
Manufacturer: Veris Industries
Part Number: H921
Weight: 0.38 lbs
Stocked Item*: Yes
Quantity Available*: 0
Price: $55.68
Quantity:

* If an order is placed where the item is a "Non-Stocked Item" or the quantity ordered is more than the quantity available, all items in stock will be shipped and the remainder of the items will be shipped as soon as we get the "backordered" items in.



Product Specifications

  • Sensor Power 30mA (max)@12-30VDC
  • Insulation Class 600VAC rms (UL), 300VAC RMS (CE)
  • Frequency 50/60Hz
  • Temperature Range -15° to 60°C (5° to 140°F)
  • Humidity Range 10-90% RH, non-condensing
  • Accuracy ±2%FS from 10% - 100% of selected range, but not less than ±0.4A
  • Response Time 2 sec.
  • Terminal Block Maximum Wire Size 14 AWG
  • Terminal Block Torque (nominal) 4 in-lbs (0.45 N-m)
  • Agency Approvals UL 508 open device listing CE: EN61010-1:2001-2, CAT III, deg. 2, basic insulation
