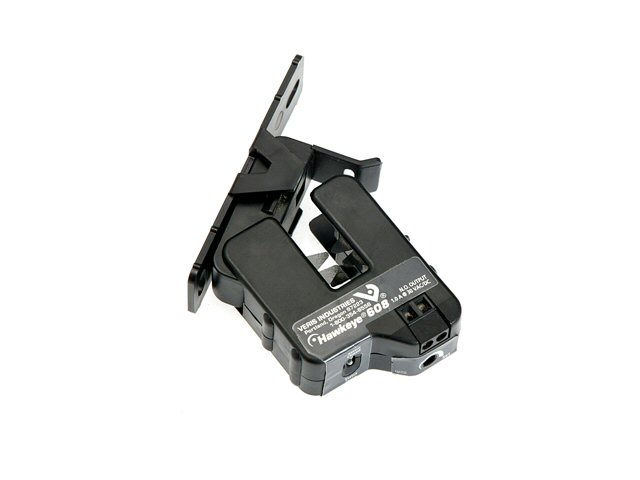

Veris Industries - H608 - Split Core Current Switch No 1Amp 30Vac/ Veris - Split Core Current Switch No 1Amp 30Vac/Dc 1.25-50Amp

Split Core Current Switch No 1Amp 30Vac/

H608 current switches offer high performance, with a wide array of amperage range options. These products can accurately detect belt loss, coupling shear, or other mechanical failure on loads from 1/5 to 100HP.
APPLICATIONS

  • Detecting belt loss, coupling shear, and mechanical failure
  • Verifying lighting circuit and other electrical service run times
  • Monitoring status of industrial process equipment
  • Monitoring status of critical motors (compressor, fuel, etc.)
High performance devices
  • Small size...fits easily inside small enclosures
  • Self-gripping iris on the split-core housing for easy installation
  • Status LEDs for easy setup and local indication
  • 1 Amp status output for increased application flexibility
  • All devices are 100% solid state and polarity insensitive, with a 5-year warranty

Customer Rating: Not Rated Yet
Quick Order Number: 78
Manufacturer: Veris Industries
Part Number: H608
Weight: 0.13 lbs
Stocked Item*: Yes
Quantity Available*: 70
Price: $32.23
Quantity:

* If an order is placed where the item is a "Non-Stocked Item" or the quantity ordered is more than the quantity available, all items in stock will be shipped and the remainder of the items will be shipped as soon as we get the "backordered" items in.



Product Specifications

  • Sensor Power Induced from monitored conductor
  • Insulation Class 600VAC RMS (UL), 300VAC RMS (CE)
  • Frequency Range 50/60 Hz
  • Temperature Range -15° to 60°C (5° to 140°F)
  • Humidity Range 10-90% RH, non-condensing
  • Hysteresis 10% (typical)
  • Terminal Block Maximum Wire Size 14 AWG
  • Terminal Block Torque (nominal) 4 in-lbs
  • Agency Approvals UL 508 open device listing CE: EN61010-1:2001-02, CAT III, deg. 2, basic insulation


Do not use the LED status indicators as evidence of applied voltage.For applications requiring double or reinforced insulation, please contact the factory.
