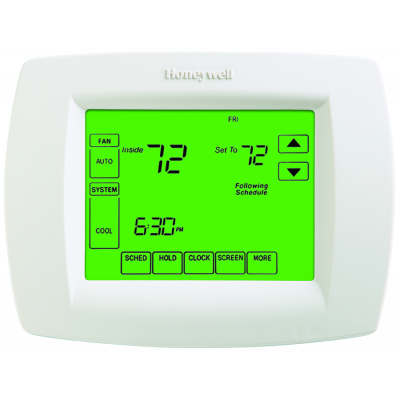

Honeywell - TH8110U1003 - 1Heat/1Cool Dual Power Touchscreen

 1H/1C Touchscreen Residential Thermostat



Overview

VisionPRO® 8000 has responsive programming for optimal comfort and energy savings. It offers you features like touch screen interaction, a real-time clock, and a backlit display. If you value comfort, choose VisionPRO and enjoy it for years to come.

Product Specifications

Hazmat Information
UN 3091 Lithium metal batteries packed in/with equipment
Application
Heat/Cool or Heat Pump without Auxiliary Heat
Dimensions (in.)
4 9/16 in. high x 6 in. wide x 1 1/4 in. deep
Dimensions (mm)
116 mm high x 152 mm wide x 32 mm deep
Comments
Selectable: Programmable or Non-Programmable; Selectable; Heat Only or Cool Only
Mounting
Horizontal
Electrical Ratings
20 to 30 Vac or 750 mV
Frequency
50 Hz; 60 Hz
Stages
Up to 1 Heat/1 Cool
Operating Humidity Range (% RH)
5 to 90% RH, non-condensing
Switch Positions (System)
HEAT-OFF-COOL-AUTO
Switch Positions (Fan)
AUTO-ON-CIRC
Sensor Element
Thermistor
Differential Temperature (F)
± 1 F
Differential Temperature (C)
±0.5 C
Color
Premier White®
Programmability
7 Day Multiple Day Programming or Non-Programmable
Power Method
Battery or Hardwired
Terminal Designations
R, RC, C, W (O/B), Y, G, S1, S2
Display Size
10 sq in.
Changeover
Auto/Manual Selectable
Setting Temperature Range (F)
Heat: 40 F to 90 F; Cool: 50 F to 99 F
Setting Temperature Range (C)
Heat: 4.5 C to 32 C; Cool: 10 C to 37 C
Cool Current
1.0 A running
Heat Current
1.0 A running
Fan Current
0.6A running



Customer Rating: Not Rated Yet
Quick Order Number: 5
Manufacturer: Honeywell
Part Number: TH8110U1003/U
Weight: 1.06 lbs
Stocked Item*: No
Quantity Available*: 0
Price: $0.00
Quantity:

* If an order is placed where the item is a "Non-Stocked Item" or the quantity ordered is more than the quantity available, all items in stock will be shipped and the remainder of the items will be shipped as soon as we get the "backordered" items in.
