 44in-lb Zelix 24v SR Vdc 4-20 Fltg
Overview

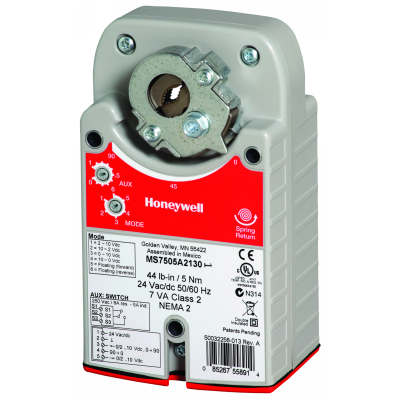

Honeywell MS7505 44 lb-in. (5Nm) torque, spring return direct-coupled, low voltage actuator accepts floating, on/off (SPDT) or modulating (0/2-10 Vdc) control and feedback for air dampers, air handlers, ventilation flaps, louvers and ball valves.
Features
- Brushless DC submotor with electronic stall protection
- Self-centering shaft coupling for various shaft sizes
- Available with combined floating and modulating control in a single device and with an internal end switch
- Access cover facilitates connectivity and durable plastic housing features built-in mechanical end limits
- Field selectable spring return direction and shaft position indicator and scale
- UL listed (cUL), CE compliant and plenum rated per UL873
|
Customer Rating: Not Rated Yet
Quick Order Number: 21
Manufacturer: Honeywell
Part Number: MS7505A2030/U
Weight: 3.87 lbs
Stocked Item*: Yes
Quantity Available*: 2
Price: $282.40
* If an order is placed where the item is a "Non-Stocked Item" or the quantity ordered is more than the quantity available, all items in stock will be shipped and the remainder of the items will be shipped as soon as we get the "backordered" items in.
|
 |
 |
 |
 |
Product Specifications
Product Specifications
- Application
- HVAC
- Dimensions (in.)
- 6 81/54 high x 3 55/84 wide x 3 5/32 deep
- Dimensions (mm)
- 177 mm high x 98 mm wide x 80 deep
- Includes
- Mounting bracket, self-centering shaft adapter
- Weight (lb)
- 3.5 lb
- Weight (kg)
- 1.6 kg
- Materials
- Plenum rated plastic housing
- Mounting
- Direct Coupled
- Frequency
- 50 Hz; 60 Hz
- Approvals, Underwriters Laboratories Inc.
- UL 873
- Electrical Connections
- Enclosed screw terminal strip (22 to 14 AWG)
- Operating Humidity Range (% RH)
- 5 to 95% RH, non-condensing
- Supply Voltage
- 24 Vac or Vdc
- Power Consumption
- Driving-- 6/3 VA
- Shipping and Storage Temperature Range (F)
- .-40 F to +150F
- Shipping and Storage Temperature Range (C)
- .-40 C to +65 C
- Approvals, CE
- EMC 2004/108/EC; Certification Low Voltage Directive 2006/95/EC; IEC 60730-1 and Part 2-14
- Approvals, Canadian Underwriters Laboratories Inc.
- cUL C22.2 No. 24-93
- Ambient Temperature Range (F)
- .-40 F to +149F
- Ambient Temperature Range (C)
- .-40 C to +65 C
- Approvals, C-Tick
- N314
- Environmental, Electrical or Ingress Protection Rating
- NEMA 2; IP54
- Internal Auxiliary Switch
- 0
- Maximum Noise Rating
- Driving (dB(A) @ 1m)-- 40; Holding (dB(A) @ 1m)-- 20 (no audible noise)
- Stroke
- 95 ±3 degrees
- Shaft Dimensions (in.)
- 3/8 to 5/8 in. round or 1/4 to 1/2 in. square
- Actuator Type
- Damper; Valve
- Control Signal
- SPDT; Floating; On/Off; (0)2-10 Vdc (4-20 mA w/500 ohm resistor)
- Fail Safe Mode
- Spring Return
- Torque Rating (lb-in.)
- 44 lb-in.
- Torque Rating (Nm)
- 5 Nm
- Spring Return Torque/Force (lb-in., lbf)
- 44 lb-in.
- Spring Return Torque/Force (Nm, N)
- 5 Nm
- Additional Torque Ratings (lb-in.)
- Maximum Stall-- 105 lb-in.
- Additional Torque Ratings (Nm)
- Maximum Stall-- 12 Nm
- External Auxiliary Switches Available
- No
- Rotation to Open
- By switch
- Rotational Stroke Adjustment
- Mechanically limited 5 degree increments
- Timing, Nominal
- Driving @ 60 Hz-- 90 sec
- Spring Return Timing
- Maximum-- 25 sec
- Feedback
- (0)2-10 Vdc
- Shaft Adapter Type
- Self-centering clamping
- Manual operation
- N/A
- Shaft Dimensions (mm)
- 9 to 16 mm round or 6 to 13 mm square
- Spring Return Direction
- By orientation
- Input Impedance
- Min. 95 kOhm
|
