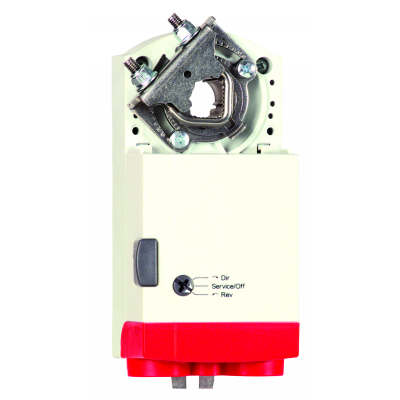

Product Specifications

Application

HVAC

Dimensions (in.)

5.23 in high x 2.60 in wide x 2.44 in deep

Dimensions (mm)

134 mm high x 66 mm wide x 62 mm deep.

Includes

Mounting bracket, screws, shaft adapter, water-tight strain-relief cable fittings

Weight (lb)

1 lb

Weight (kg)

0.45 kg

Materials

Plenum rated plastic housing

Comments

Integral 1/2 in. NPSM conduit connection.

Mounting

Direct Coupled

Frequency

50 Hz; 60 Hz

Approvals, Underwriters Laboratories Inc.

UL873, Plenum Rated

Tradeline Value

Tradeline

Electrical Connections

Enclosed screw terminal strip (22 to 14 AWG)

Operating Humidity Range (% RH)

5 to 95% RH, non-condensing

Supply Voltage

24 Vac +20%, -15%; 24 Vdc

Power Consumption

Driving-- 5 VA

Shipping and Storage Temperature Range (F)

-22 F to +176 F

Shipping and Storage Temperature Range (C)

-30 C to +80 C

Approvals, CE

89/336/ECC, 73/23/EEC

Approvals, Canadian Underwriters Laboratories Inc.

cUL C22.2 No. 24-93

Ambient Temperature Range (F)

-5 F to +140 F

Ambient Temperature Range (C)

-20 C to +60 C

Approvals, C-Tick

N314

Environmental, Electrical or Ingress Protection Rating

NEMA 2; IP54

Internal Auxiliary Switch

0

Maximum Noise Rating

Driving (dB(A) @ 1m)-- 35

Stroke

95 ±3 degrees

Shaft Dimensions (in.)

1/4 to 1/2 in. square or 3/8 to 5/8 in. round

Actuator Type

Damper; Valve

Control Signal

Floating; SPDT; On/Off

Fail Safe Mode

Non-Spring Return

Torque Rating (lb-in.)

44 lb-in.

Torque Rating (Nm)

5 Nm

Additional Torque Ratings (lb-in.)

Maximum Stall-- 70 lb-in.

Additional Torque Ratings (Nm)

Maximum Stall-- 8 Nm

External Auxiliary Switches Available

Yes, SSW2-1M

Rotation to Open

By switch

Rotational Stroke Adjustment

Dual Integral Adj. Stops (3 degree increments)

Timing, Nominal

Driving @ 60 Hz-- 95 sec

Shaft Adapter Type

U-bolt clamp

Manual operation

Declutch mechanism

Shaft Dimensions (mm)

6 to 13 mm square or 8 to 16 mm round
